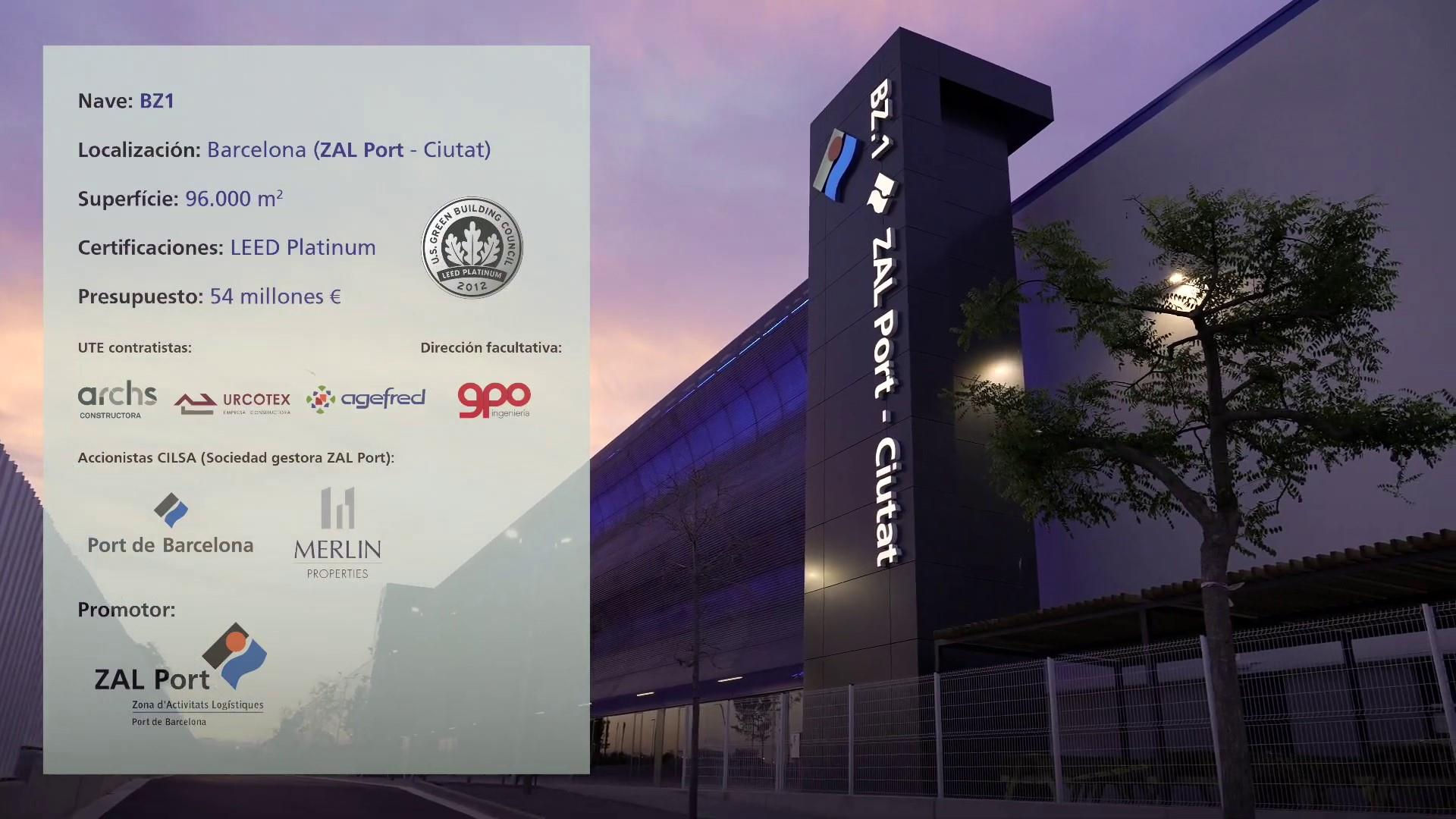

client: Centro Intermodal de Logística, S.A CILSA
location: ZAL Port · Barcelona
management: Roberto Ripoll Pérez (Architect) GPO Ingeniería
certifications: LEED Platinum v4 BD+C: Warehouses and Distribution Centers
ending year: 2021 built area: 95.930 m²
budget: 44.973.895 € Temporary join venture: Isidre Archs, S.L. + Urcotex, S.L. + Agefred, S.L.U.

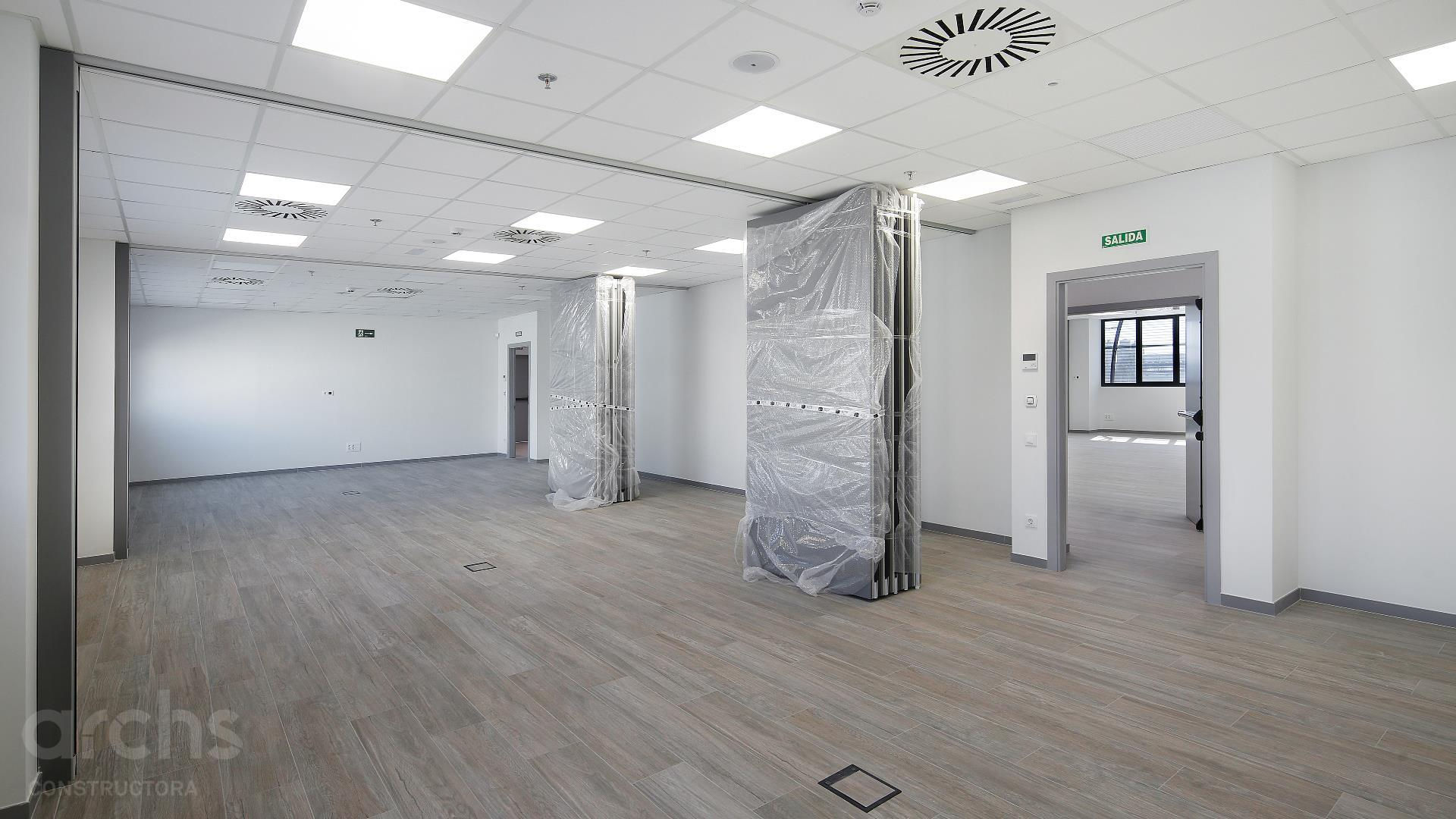

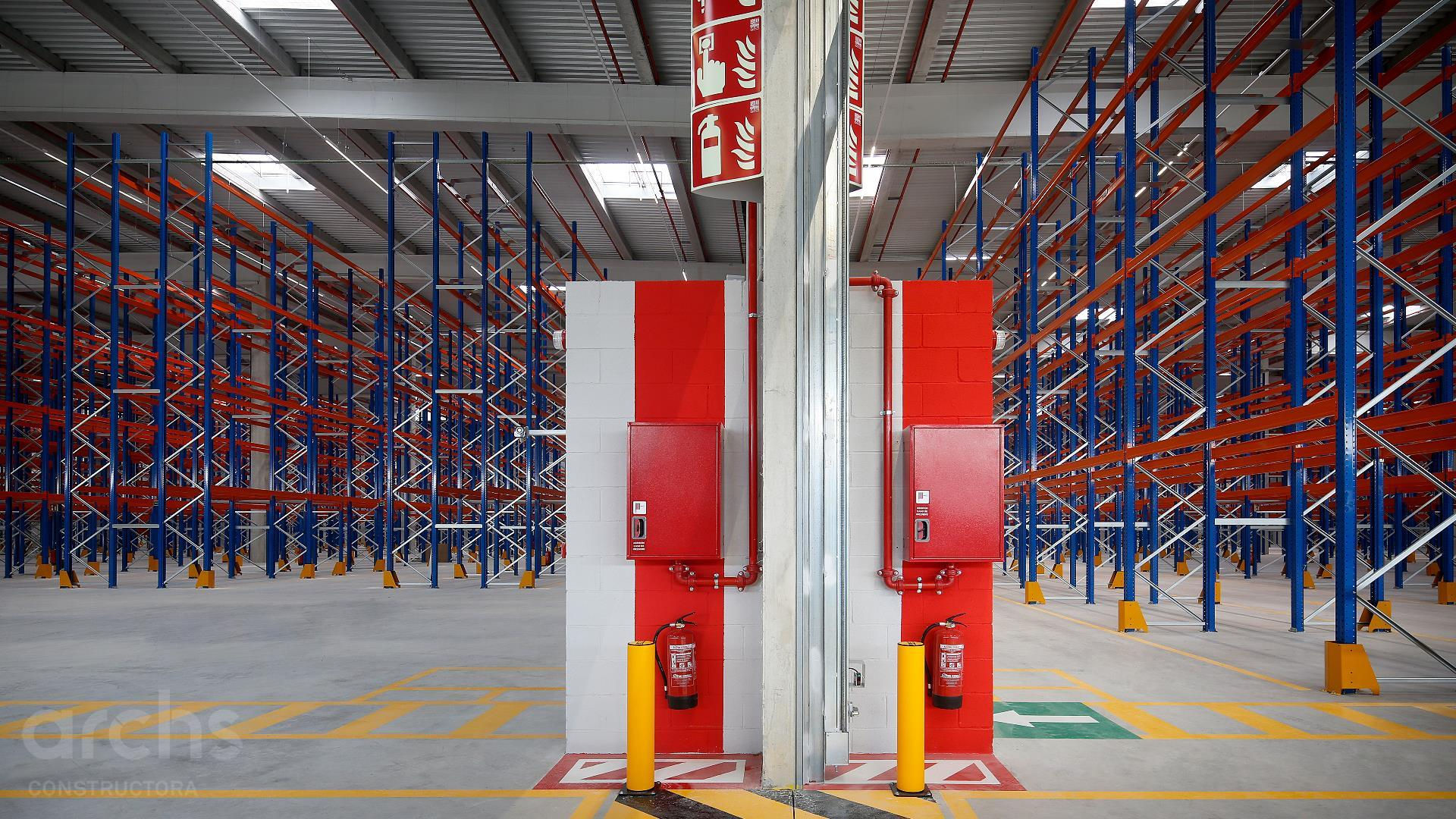

The building consists of 2 warehouses, 230x200m, that include the ground floor and first floor of offices, the connecting corridor between both warehouses and the technical rooms.
There are 112 dump docks for trucks and 4 dump docks for vans.
In addition, there are 55,817 m² of exterior urbanization, 2,173 m² for green areas, where 101 trees and 706 native shrubs are planted and automatically watered with rainwater collected in a 75,000-liter tank.

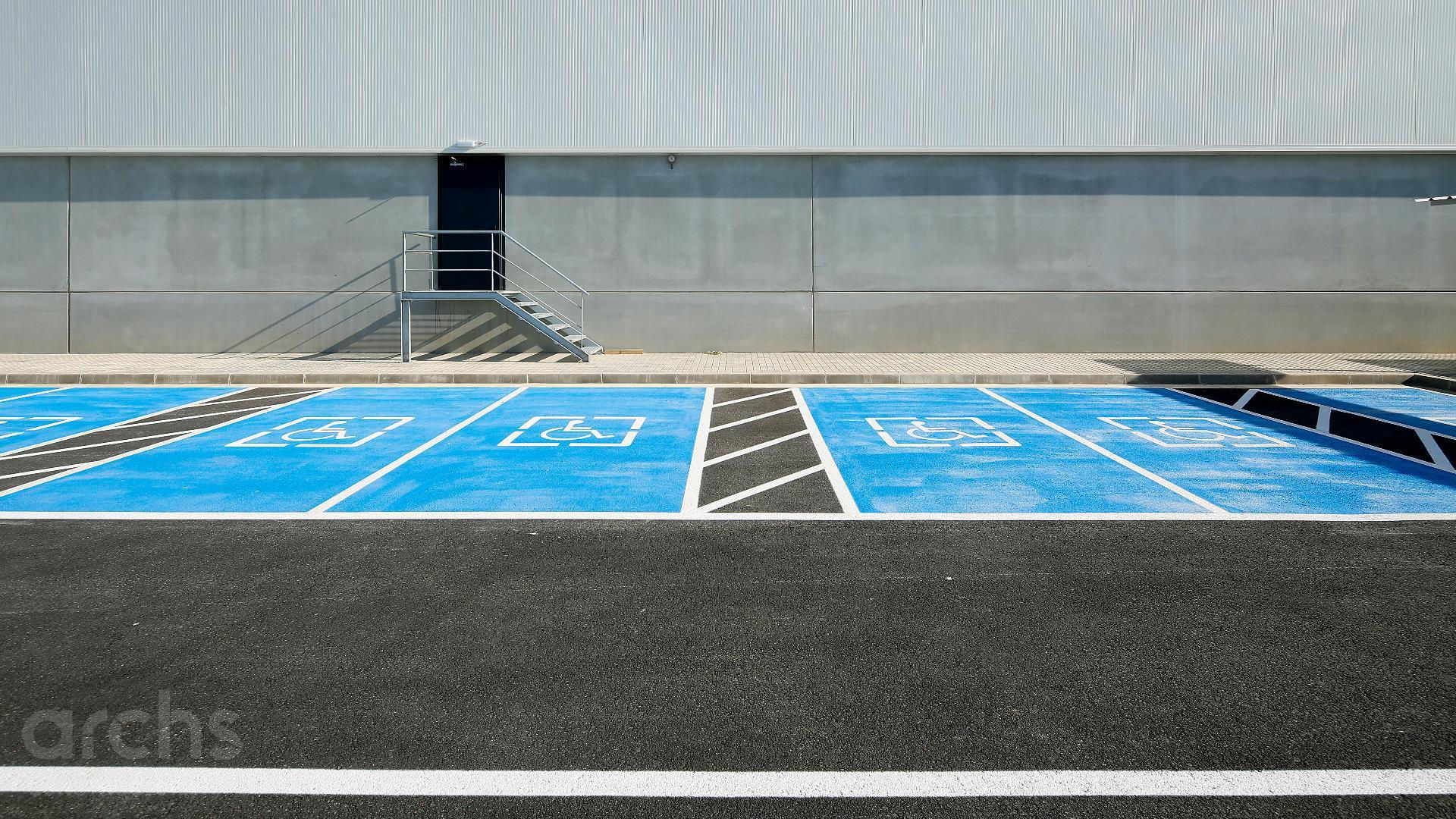

It also includes the parking area with capacity for:
469 spaces for cars, 10 of them for adapted cars and 24 for shared vehicles
6 electric chargers and 12 places for electric vehicles
29 places for trucks
20 places for motorcycles
100 places for bicycles
1,826 photovoltaic panels have been installed on 7,180 m² of the roof that supply a 550 kW nominal power, able to reach a peak power of 660 kW.
The building's facilities are: drinking water, electricity, photovoltaics, lighting, climate, ventilation, detection and alarm, fire fighting, intrusion, surveillance cameras, telephone, control, waste collection and automatic irrigation with rainwater.
